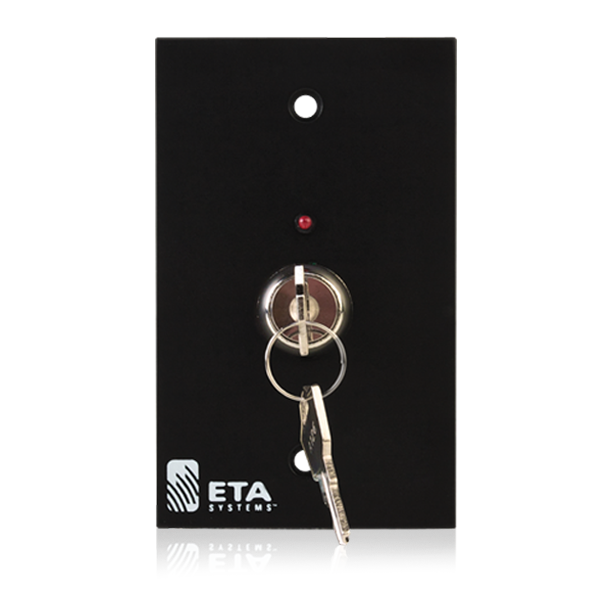

Key Lock Remote Wall Plate for Use with ECS-3

ECS-KSW3M

The ECS-KSW3M is a single gang electrical cover plate that works in conjunction with the ECS-3 electrical sequencer. The ECS-3 electrical sequencer can be remotely activated and monitored using the ECS-KSW3M control panel. This panel can be placed several hundred feet away from the ECS-3 sequencer. A Keyed On / Off switch is provided for security.

FEATURES

Red LED On/Off Indicator

Access Via Keyed On/Off for Security

Neutral Black Finish

Works with the ECS-3

SPECIFICATIONS

Connector Type	Tinned Leads
Height	4.5" (114.3mm)
Width	2.75" (69.85mm)
Weight	.25 lbs. (.5 kg)
