Remote Control Panel for Use with ECS-6RM

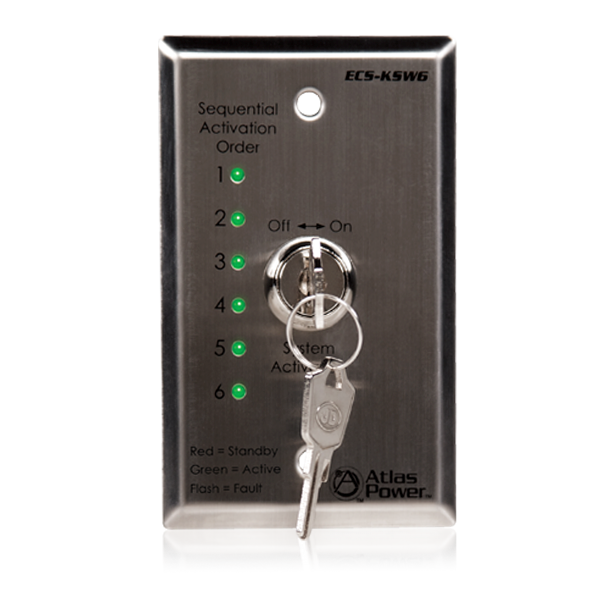

    The ECS-KSW6 is a single gang electrical cover plate that works in conjunction with the ECS-6RM system controller. The ECS-6RM system controller can be remotely activated and each channel can be monitored using the ECS-KSW6 control panel. This panel can be placed several hundred feet away from the ECS-6RM controller. A Keyed On / Off switch is provided for security. There are six Bi-Color LEDs on the ECS-KSW6 panel. One LED for each of the six sequenced channels of the ECS-6RM. These LEDs mimic the Channel Activation LEDs that are on the front of the ECS-6RM panel. Wiring the ECS-KSW6 panel requires a RJ45 connector and 8 conductors. It is recommended to use CAT5 cable.

    6 Bi-Color LEDs Represent Channels on ECS-6RM
    Access Via Keyed On/Off for Security
    Contemporary Silver, Brushed Stainless Steel Finish
    Connector Type RJ45
    Height 4.5" (114.3mm)
    Width 2.75" (69.85mm)
    Weight .25 lbs. (.5 kg)
    Warranty Period 12 months from date of purchase
