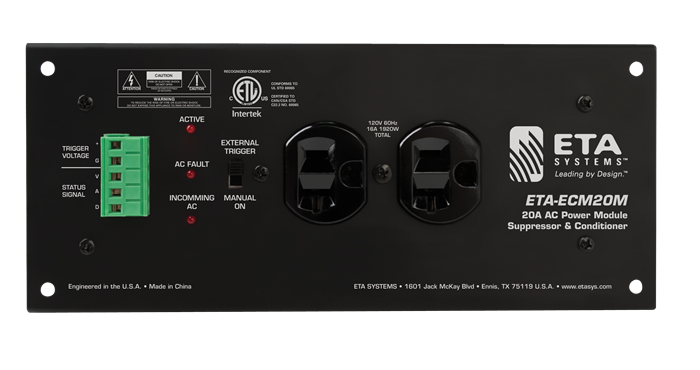

20A AC Power Conditioner and Spike Suppressor

ETA-ECM20M

    The ETA Systesms ETA-ECM20M is a 20A Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with a ETA-ECS6RM or ETA-SEQ6 sequencing unit up to 1000ft away. The ETA-ECM20M features AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry, and Remote Activation. In addition, the ETA-ECM20M features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies.

    The ETA-ECM20M is designed to be conveniently housed in the ECM-RACEWY6 for the addition of multiple outlets directly connected to the AC mains from the electrical panel.

    Features
    2 Outlets, 20A
    Manual/Auto On/Off Switch
    Incoming AC Present LED
    Active LED
    AC Fault LED
    Clamping Spike & Surge Suppression
    AC Mains Voltage & Current Monitoring
    Radio Frequency and Electromagnetic Interference Filtering
    Tech Specs
    Current Rating 20 Amps
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6,000V
    Power Consumption .5 Watts
    Power Requirements 120V 60Hz
    Height 3.0" (76.2mm)
    Width 8.5" (215.9mm)
    Depth 3.5" (88.9mm)
    Weight 1.75 lbs. (.80 kg)
    Certifications MET (UL 1449)
    Support Files
    Data Sheet Reference Chart (1 page) View | Download
    Data Sheet Data Sheet (2 pages) View | Download
    Owners Manual Owners Manual (12 pages) View | Download
