30A AC Power Module Spike Suppressor

ETA-ECM30

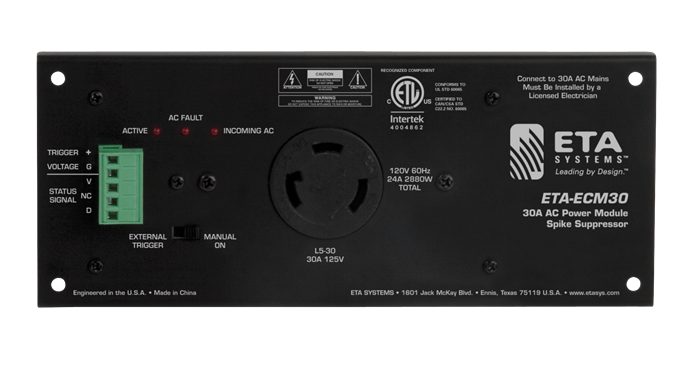

    The ETA Systems ETA-ECM-30 is an Electrical Control Module (ECM) 30A Power Conditioner and AC Spike Suppressor that is designed to be used as a stand-alone unit or in conjunction with an ETA-ECS6RM Controller up to 1000ft away. The ETA-ECM30 features electrical supression circuitry that can suppress up to 6kV or 3000A voltage spikes. Additionally the unit features Extreme Voltage Shutdown (EVS) when used in conjunction with an ETA-ECS6RM controller. This enables the unit to be shut off during High or Low AC line conditions in order to protect electronics plugged into the unit.

    Unit must be used in conjunction with either the ECM-RACEWY1, EMC-RACEWY3, or ECM-RACEWY6 mechanical, rack mountable housing.

    Features
    Single 30A Outlet
    Manual/Auto On/Off Switch
    Incoming AC Present LED
    Active and AC Fault LEDs
    Clamping Spike & Surge Suppression EVS Circuitry
    Tech Specs
    Current Rating 30 Amps
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6,000V
    Power Consumption .5 Watts
    Power Requirements 120V 60Hz
    Height 3.0" (76.2mm)
    Length 8.5" (215.9mm)
    Depth 3.5" (88.9mm)
    Weight 1.25 lbs. (.68 kg)
    Certifications MET (UL 1449)
    Support Files
    Data Sheet Reference Chart (1 page) View | Download
    Owners Manual Owners Manual (12 pages) View | Download
