AC Sequence and Controller Monitor

ETA-ECS6RM
AC Sequence and Controller Monitor

    The ETA-ECS6RM modular system has been designed to meet most installation requirements for AC power distribution, equipment power conditioning and surge suppression protection. The compact 1 RU unit features six sequential timing sections that can be activated via the unit, or remotely. Up to three ECS-6RM units can be daisy chained together with independent trigger timing settings giving you a total of 18 sequence triggered outlets. The ETA-ECS6RM unit is the activation controller/monitor portion of the system and requires a 120V AC Mains ECM (Electrical Controlled Module) module for each triggered output. A variety of remote ECM AC modules are available to meet different installation requirements.

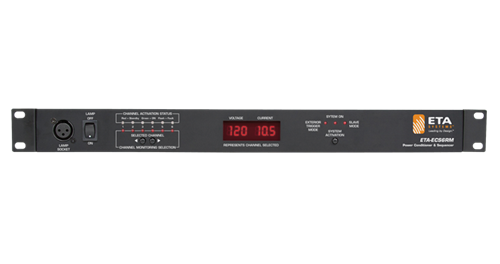

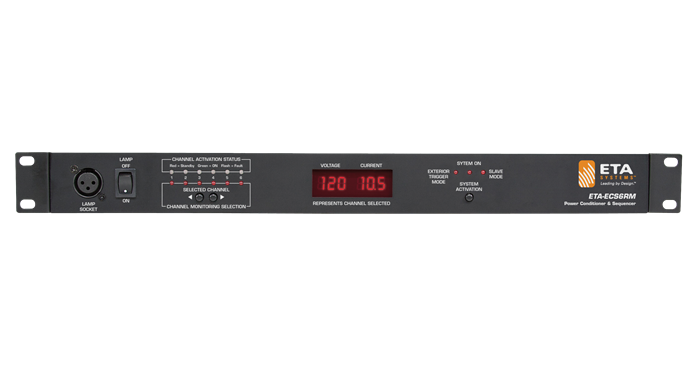

    The ETA-ECS6RM can also monitor up to six independent 20A AC main lines, both voltage and current readings can be viewed via the laboratory grade meters on the front panel. The ECS-6RM has built in intelligence that monitors the AC lines and will inform you of potentially damaging voltages.

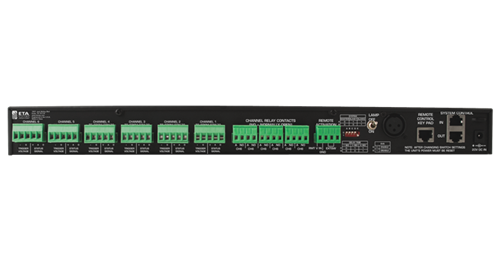

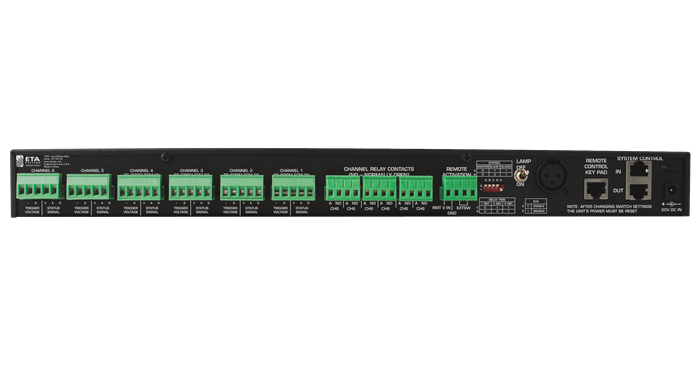

    The ETA-ECS6RM also features 6 sequenced independent relay contacts. The activation of the contacts work in parallel of the corresponding ECM triggered outputs. Activation can be done via the Front panel momentary switch, RMT V input (5-24VDC), External switch, or via the optional Remote ECS-KSW6 key switch. The ECS-KSW6 can be placed up to 1000 ft away from the ECS-6RM and will also indicate if an ECM is activated or if a fault condition has occurred on one or all six channels.

    Features
    Six Sequencer Timing Sections, 1, 3, or 6 Second Intervals
    Six Independent ECM Connections
    Six Independent Contact Closures
    Front Panel Digital AC Mains Voltage and Current Meter
    External Switch Sequence Trigger Activation
    External DCV Sequence Trigger Activation 5-24VDC
    Abnormal AC Line Voltage Indicator
    Front & Rear XLR Connector for 12VDC Gooseneck LED Lamp (AP-GNL18)
    External DC Power Supply, Wide Range 100V-240VAC, 20V DCV
    Support Files
    Data Sheet Data Sheet (2 pages) View | Download
    Data Sheet Reference Chart (1 page) View | Download
    Owners Manual Owners Manual (24 pages) View | Download
