15A Power Conditioner and Distribution Unit

ETA-PD8

    The ETA-PD8 was designed to be flexible with features that allow it to be used in a variety of applications. The ETA-PD8 can be used solely for protection against voltage surges or for AC distribution. If fuzzy video or frequent static pops occur, the AC power conditioning may eliminate or reduce those inconveniences.

    The ETA-PD8 features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The ETA-PD8’s circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.

    Features

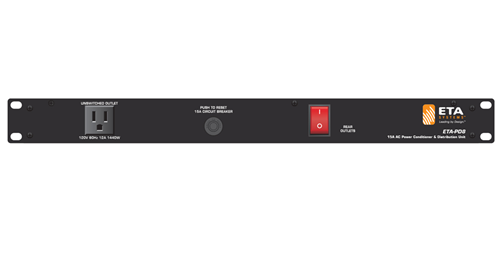

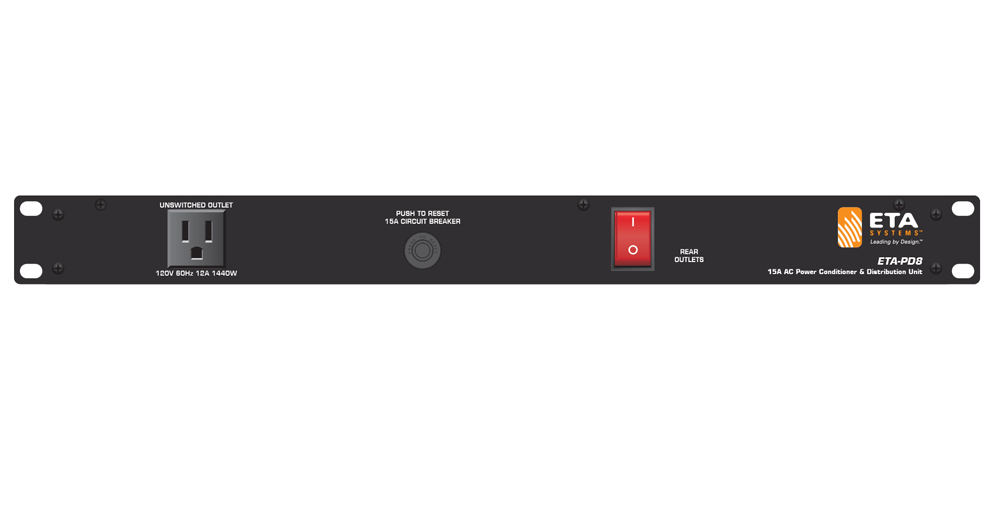

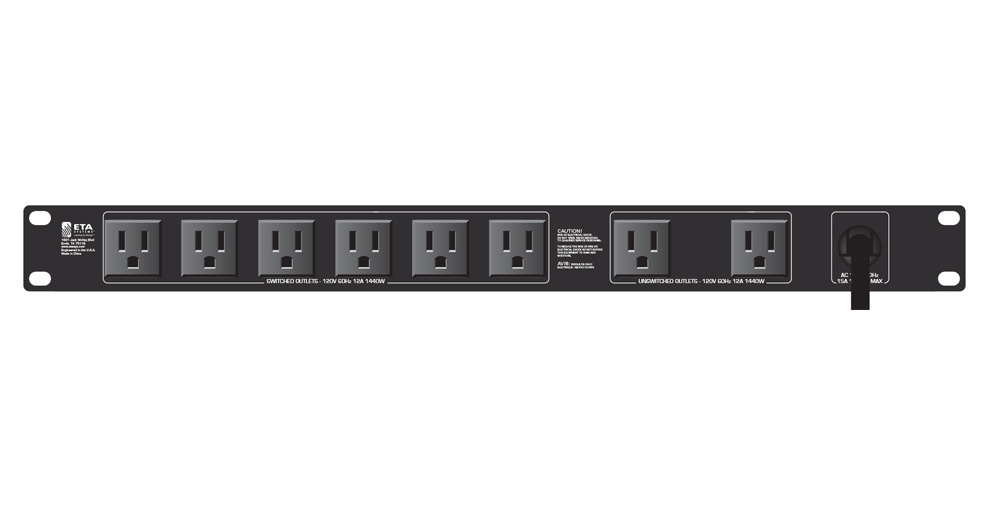

    9 Total Outlets: 8 Rear Panel (6 Switched/2 Unswitched), 1 Front Panel Unswitched
    Circuit Breaker Protection @ 15A
    Radio Frequency and Electromagnetic Interference Filtering
    Spike Suppression Up to 6000V
    Tech Specs
    Current Rating 15 Amps
    Operating Voltage 102 - 132VAC
    Minimum Spike Clamping Voltage 460VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 6 Watts
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 5" (127mm)
    Weight 5 lbs. (2.27kg)
    Support Files
    Owners Manual Owners Manual (12 pages) View | Download
    Data Sheet Data Sheet (1 page) View | Download
