15A Power Conditioner and Distribution Unit

ETA-PD8A

    The ETA-PD8A features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise from Electromagnetic Interference (EMI) from such items as electric motors and switching power supplies. The benefit of these filters can be seen on video products or audibly by reducing static pops and external signal interference.

    The ETA-PD8A is unique in that the integrator can select the power cord length that is required for the installation. A removable 12' IEC power cord with a retainer bracket is supplied with the unit. A shorter or longer cord can be purchased separately if needed.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The ETA-PD8A’s circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds, thus ensuring virtually trouble free protection. The front panel also features AC fault and ground status indicators providing quick, visual reassurance the equipment is safe.

    Features
    9 Total Outlets

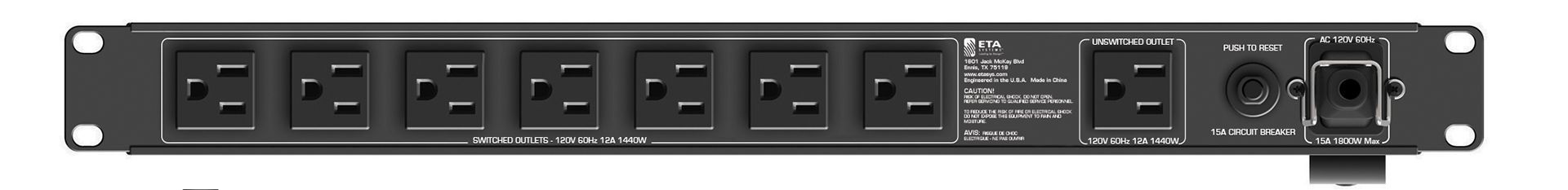

    7 Rear Panel Switched Outlets
    1 Rear Panel Unswitched Outlet
    1 Front Panel Unswitched Outlet
    RFI Noise Filtering to Reduce Radio Frequency Interference
    EMI Filtering to Reduce Electromagnetic Interference
    Circuit Breaker Protection @ 15A
    Spike Suppression up to 6000V

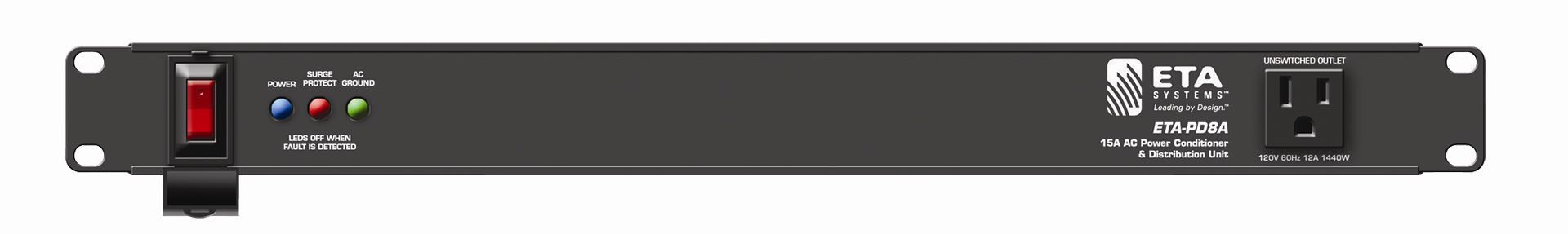

    AC Fault Indicator
    Ground Status Indicator
    Removable IEC Power Cord with Retainer Bracket
    Tech Specs
    Current Rating 15 Amps
    Operating Voltage 102 - 132VAC
    Minimum Spike Clamping Voltage 460VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 6 Watts
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 5" (127mm)
    Weight 5 lbs. (2.27kg)
    Support Files
    Data Sheet ETA-PD8 Data Sheet (2 pages) View | Download
    Owners Manual ETA-PD8A Owners Manual (12 pages) View | Download
