15A Power Conditioner and Distribution Unit with Front LED

ETA-PD8LA

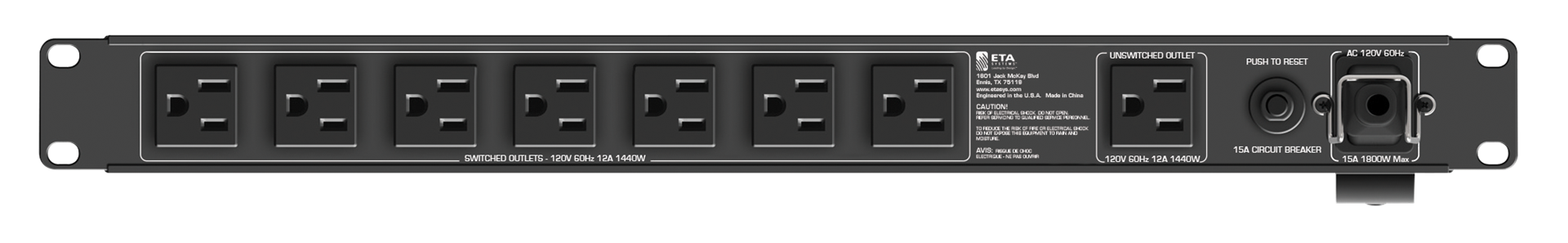

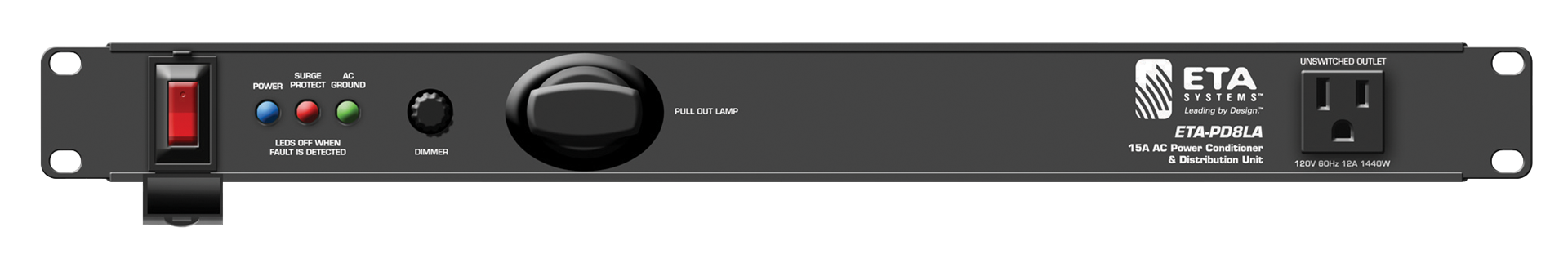

    The ETA-PD8LA was designed to be flexible with features that allow it to be used in a variety of applications. The ETA-PD8LA can be used solely for protection against voltage surges or for AC distribution. The unit includes seven rear panel switched outlets and a single unswitched outlet as well as the circuit breaker reset switch. The front panel includes a single unswitched outlet as well as a pull out LED lamp.

    The integrated AC power conditioning is designed to eliminate or reduce fuzzy video or static pops that can be the result of unclean power.The ETA-PD8LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The ETA-PD8LA’s circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.

    Features
    7 Rear Panel Switched Outlets
    1 Rear Panel Unswitched Outlets
    1 Front Panel Switched Outlets
    RFI Noise Filtering to Reduce Radio Frequency Interference
    EMI Filtering to Reduce Electromagnetic Interference
    Circuit Breaker Protection @ 15A
    Spike Suppression up to 6000V
    AC Fault Indicator
    Ground Status Indicator
    Removable IEC Power Cord with Retainer Bracket
    Front Panel Pull Out LED Lamp
    Tech Specs
    Current Rating 15 Amps
    Min. Spike Clamping Voltage 460 VRMS @ 3000A
    Max. Spike Clamping Voltage 6kV
    Operating Voltage 102VAC - 132VAC
    Power Consumption 6 Watts
    Height 1.75" (1RU, 44.5mm)
    Width 19" (482.6mm)
    Depth 5" (127mm)
    Weight 5 lbs. (2.27kg)
    Support Files
    Owners Manual Owners Manual (12 pages) View | Download
    Data Sheet Data Sheet (2 pages) View | Download
