15A Power Conditioner and Distribution Unit


    The ETA-S15L features noise filtering for eliminating unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15L's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds, thus ensuring virtually trouble free protection. The AP-S15L has incorporated a front panel pull-out dimmable LED tube light to light a rack,. The rear of the rack can be illuminated using the optional 16" gooseneck LED lamp connected via an XLR style socket.

    9 Total Outlets

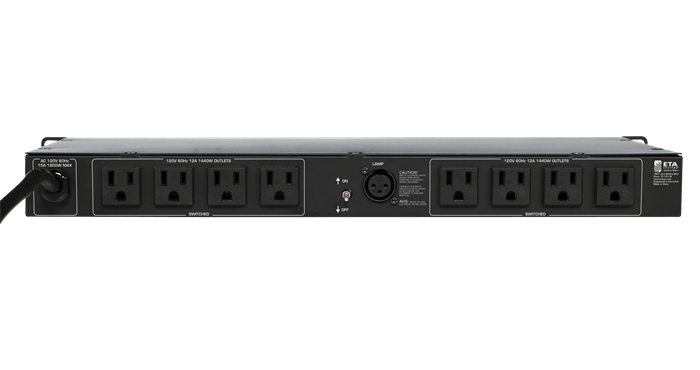

    8 Rear Panel Switched Outlets

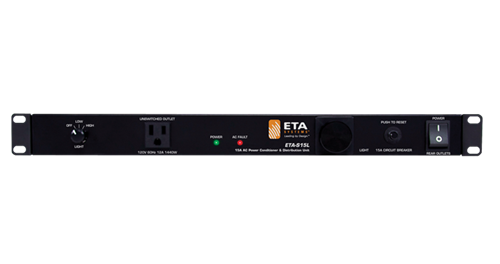

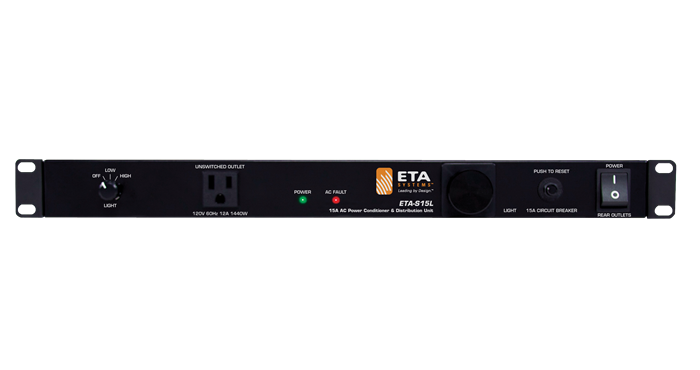

    1 Front Panel Unswitched Outlet
    Radio Frequency and Electromagnetic Interference Filtering
    Circuit Breaker Protection @ 15A
    Spike Suppression up to 6000V
    AC Fault Indicator
    Front Mounted Pull-Out LED Light with 2-Position Dimmer
    Rear Mounted XLR Connector for 12VDC LED Lamp (AP-GNL18)
    Current Rating 15 Amps
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 8 Watts
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 5" (127mm)
    Weight 5.5 lbs. (2.49 kg)
    Certifications MET (UL 1449)
