20A Power Conditioner and Distribution Unit

ETA-S20

    The ETA-S20 features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The ETA-S20's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.

    Features
    9 Total Outlets

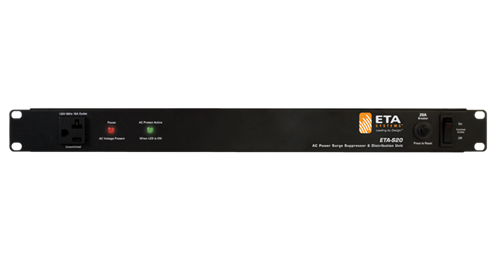

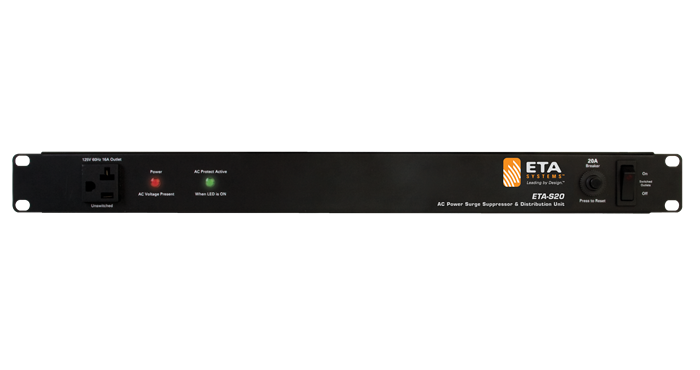

    1 Front Panel Outlet, Unswitched
    Spike Suppression Up to 6000V

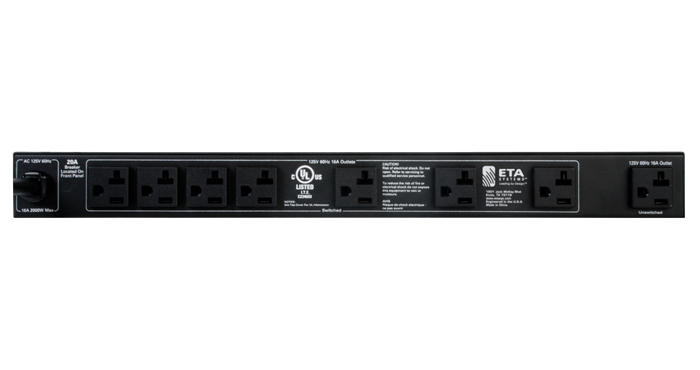

    7 Rear Panel Switched Outlets
    1 Rear Panel Unswitched Outlet
    Circuit Breaker Protection 20A
    Tech Specs
    Current Rating 20 Amps
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 3.75" (95.5mm)
    Weight 5 lbs. (2.27 kg)
    Certifications MET (UL 1449)
    Support Files
    Data Sheet Reference Chart (1 page) View | Download
    Owners Manual Owners Manual (8 pages) View | Download
